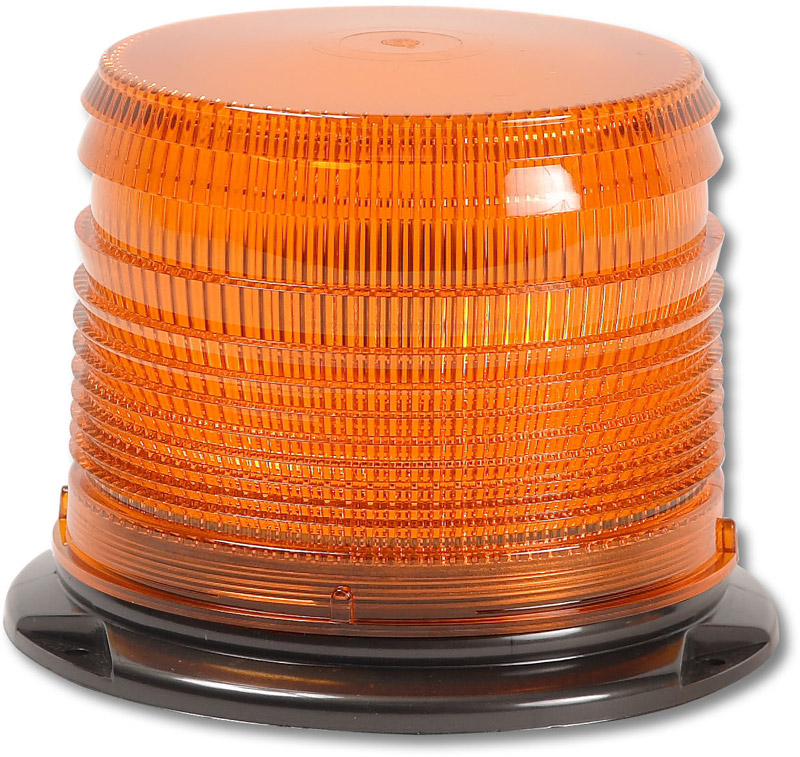

STAR HALO LED BEACON

$179.95$225.95

Star Halo LED Beacon with low current draw, ultra high intensity LEDs, 24 flash patterns, 2 rotating patterns, high/low intensity feature (Manual or Automatic), and S-Link System™ that allows synchronizing capabilities with other STAR LED products.

The below options are for AMBER beacons, contact us for other colors.

Clear

Description

Star Halo LED Beacon technology is a patent pending, extremely low current draw, ultra high intensity LED light that exceeds the latest J845 and CA13 standards. The circuitry is designed with 24 customer selectable flash patterns, 2 rotating patterns high/low intensity feature (Manual or Automatic), and S-Link System™ that allows synchronizing capabilities with other STAR LED products. All circuitry is fully encapsulated for increased weather and shock resistance.

Product Features:

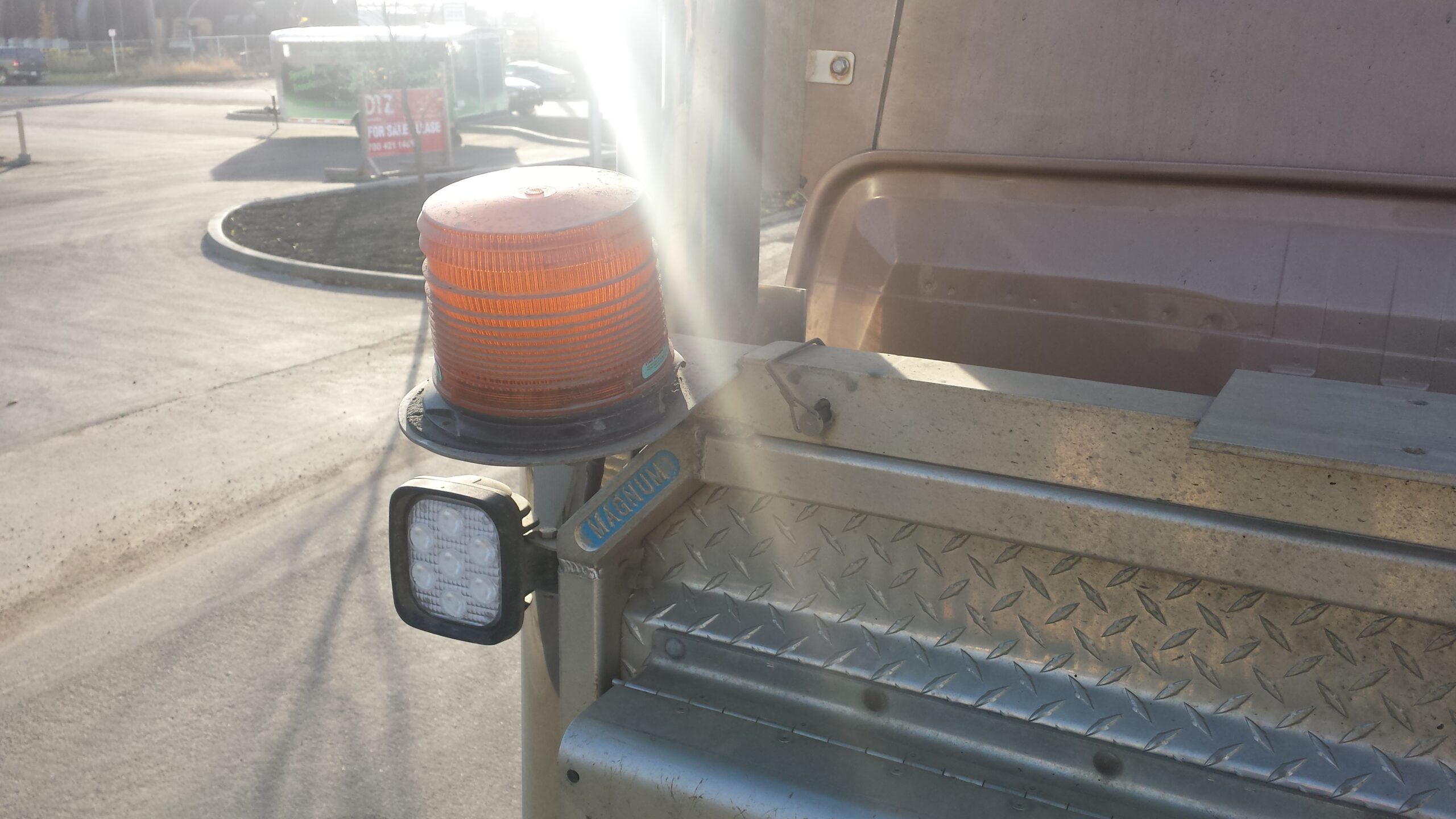

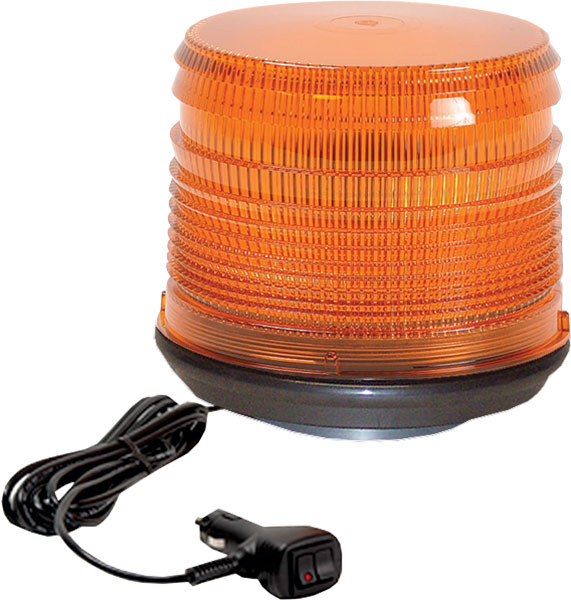

  • Lightweight polycarbonate, universal flange base:  – 3-hole permanent mount  – 1” pipe mount  – Optional vacuum magnetic mount with cig. plug adapter
  • Durable polycarbonate, twist on/off lens
  • 24 Customer selectable flash patterns,  2 rotating patterns and steady burn.
  • Cig. plug with on/off switch and pattern select switch
  • S-LINK SYSTEM™ synchronizing capability with other STAR LED units
  • High/low Intensity – manual or automatic
  • Extremely low current draw
  • Completely encapsulated circuit for increased weather and shock resistance

Specifications:

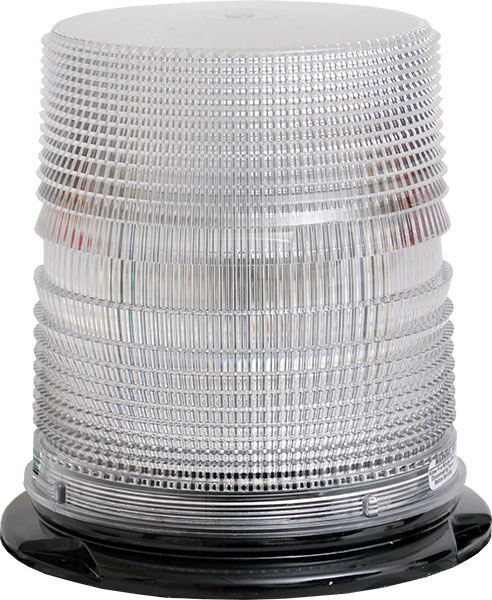

  • Dimensions:  – (Short Dome): 4-3/4” tall x 6-13/32” dia.  – (Tall Dome): 6-11/16” tall x 6-13/32” dia.
  • Voltage: 10 – 30V DC perm. mount. 10 – 16V DC mag. mount
  • Amp Draw: 0.6 Amps @ 12V DC, 0.3 Amps @ 24V DC

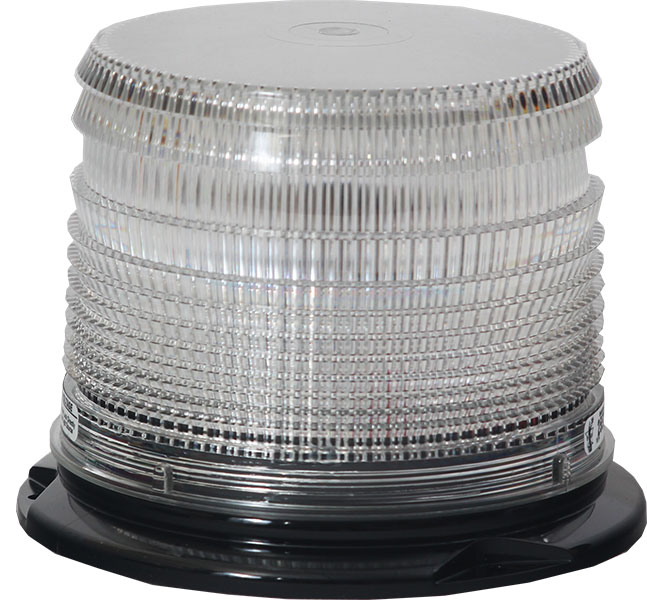

  • Lens Colors: Amber, Blue, Clear, Green, Red

Standard Models:

  • 255H8TAL
  • 255H8TCLV
  • 255HTAL
  • 255HTCLV
  • 255H8TALV
  • 255H8TSL
  • 255HTALV
  • 255HTSL
  • 255H8TCL
  • 255H8SLM
  • 255HTCL
  • 255HTSLM
  • 255H8TCLM
  • 255H8TSLV
  • 255HTCLM
  • 255HTSLV

Key:

A – Tall lens w/dust cover
C – Tall lens
M – Magnet mount
H – High intensity 4 LEDs
H8 – Ultra high intensity 8 LEDs
S – Short lens
V – Vacuum magnet mount

Additional information

Weight N/A
Dimensions N/A
Color

Amber, Blue, Green, Red, White

Mounting

Permanent, Vacuum Magnetic

Size

Short Dome, Tall Dome, Tall Dome w/ Dust Cover

LEDs

4, 8
