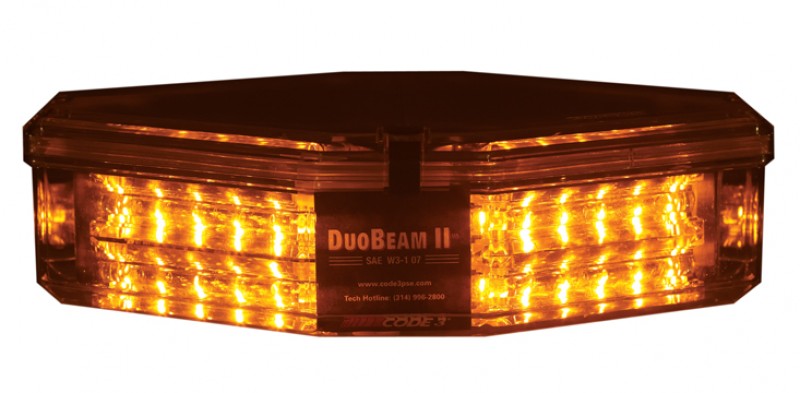

CODE 3 DuoBeam II

• Choose one of three different LED technologies and a variety of options designed to meet your needs and your budget.
• Low profile shape is designed to output a large amount of light – great in pairs for each side of your vehicle.

• Low Profile Design and Multiple Flash Patterns
• Available in Single TriCore, PriZm II, and Torus LED Lightheads. Torus Lightheads also Available in Double Stack. See Options Tab for different models
• PriZm II LED Lightheads also Availabe in MultiColor
• Matching Colored Lens & LEDs or Clear Lens with Red, Blue, Amber, or White LEDs
• Standard Lightbar Mounting (Carriage Bolt Track)
• Mounting Kits Available – Standard, MAG, MMBH, IMMBH, KITTOH-DB2
• Independent Flashing Heads or CC Heads Available on Certain Models
• Build-Your-Own Models Also Available

General Specifications

• 15′ cable standard, 35′ cable available
• 10.3″ L x 10.3″ W x 3.3″ H ( 254 mm x 254 mm x 76.2 mm)
• Carriage bolt track spacing – 3.25″
• Average weight – 6 lbs
• 12 Volt
• 0.5 Amps average per Torus Module (double stack)
• 0.6 Amps average per PriZm II Module for 8 LEDs
• 0.8 Amps average per PriZm II Module for 12 LEDs
• 1.2 Amps average per TriCore Module
• 5-Year Warranty on LEDs
• Meets SAE J845 and California Title 13 requirements when properly configured

• TriCore Model – World Class TriCore Lightheads are available in Amber, White, Blue, and Red LEDs with matching or Clear lens. White LEDs with clear lens only
• PriZm II Model – PriZm II are available in single and MultiColor – Blue/Amber and Red/Amber LEDs with Clear Lens. Flashes one color then the other
• Torus Double Stack Model – Torus LEDs are double stacked in Amber, White, Blue, and Red with matching or Clear lens. White LEDs with Clear lens only. Can have separate colors on top and bottom
• Torus Single Stack Model – Torus LEDs in Amber, White, Blue, and Red with matching or Clear lens. White LEDs with Clear lens only
