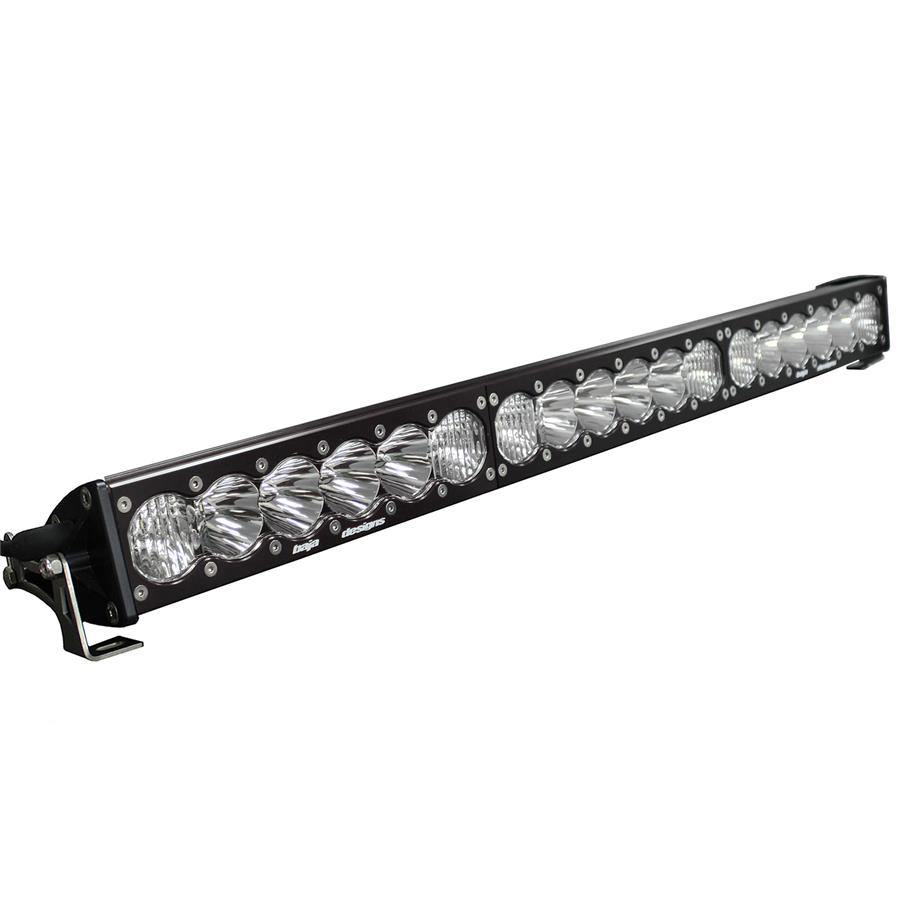

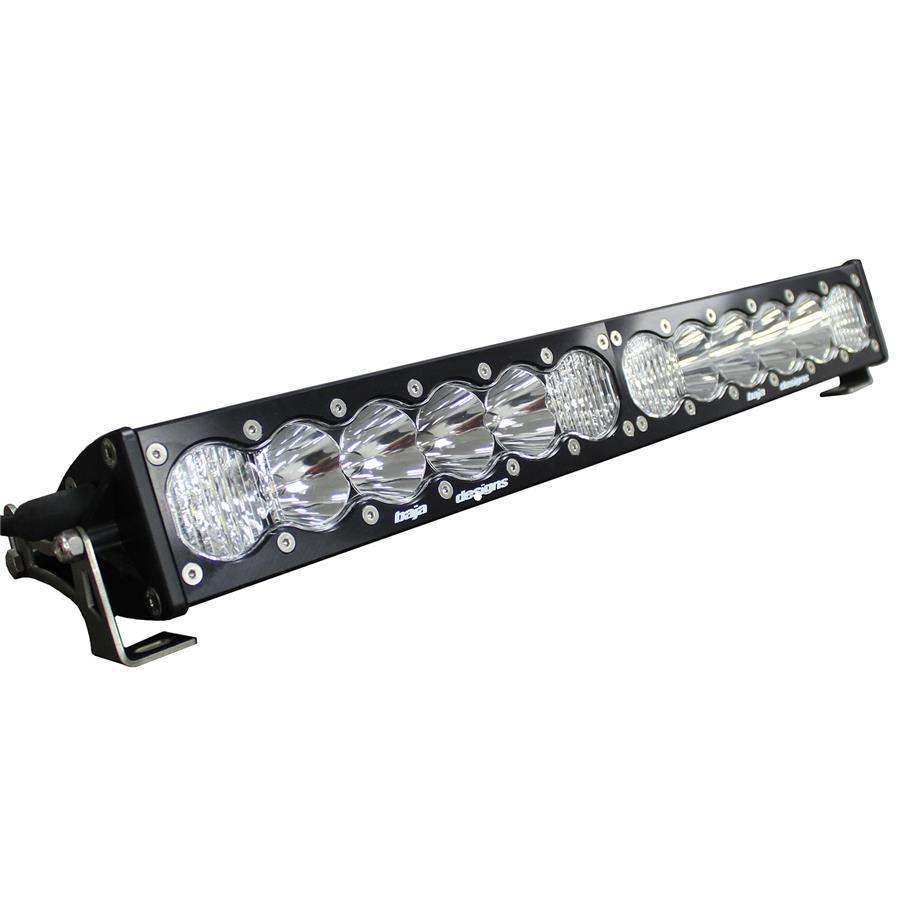

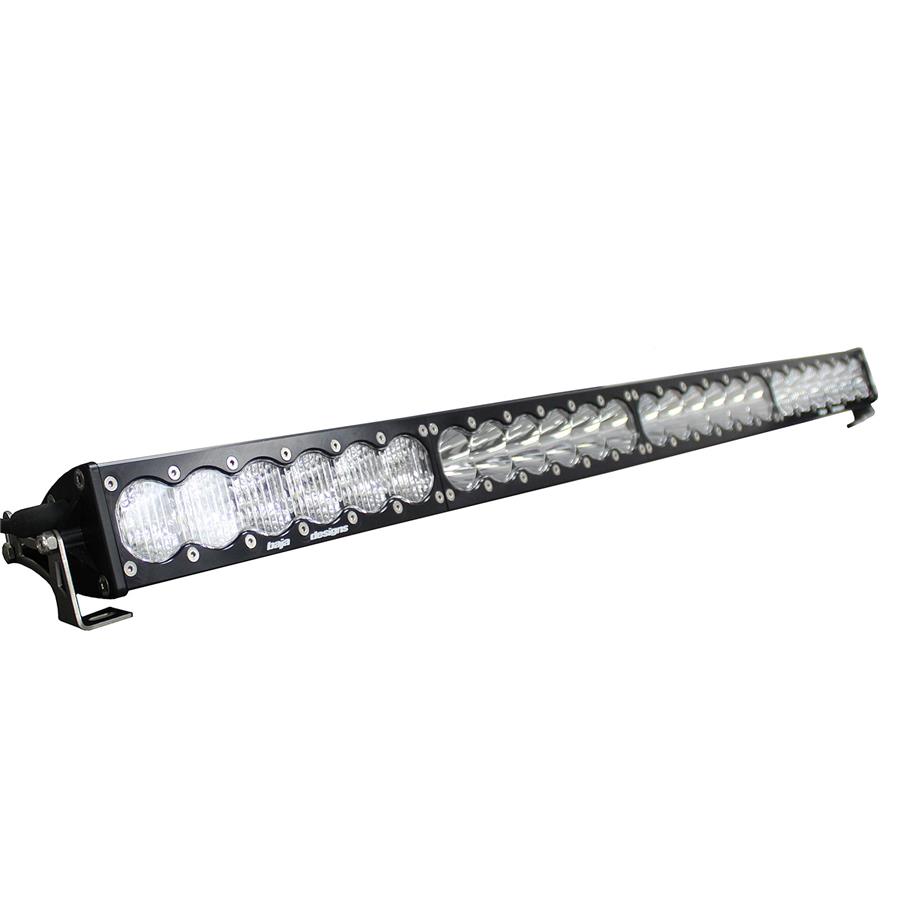

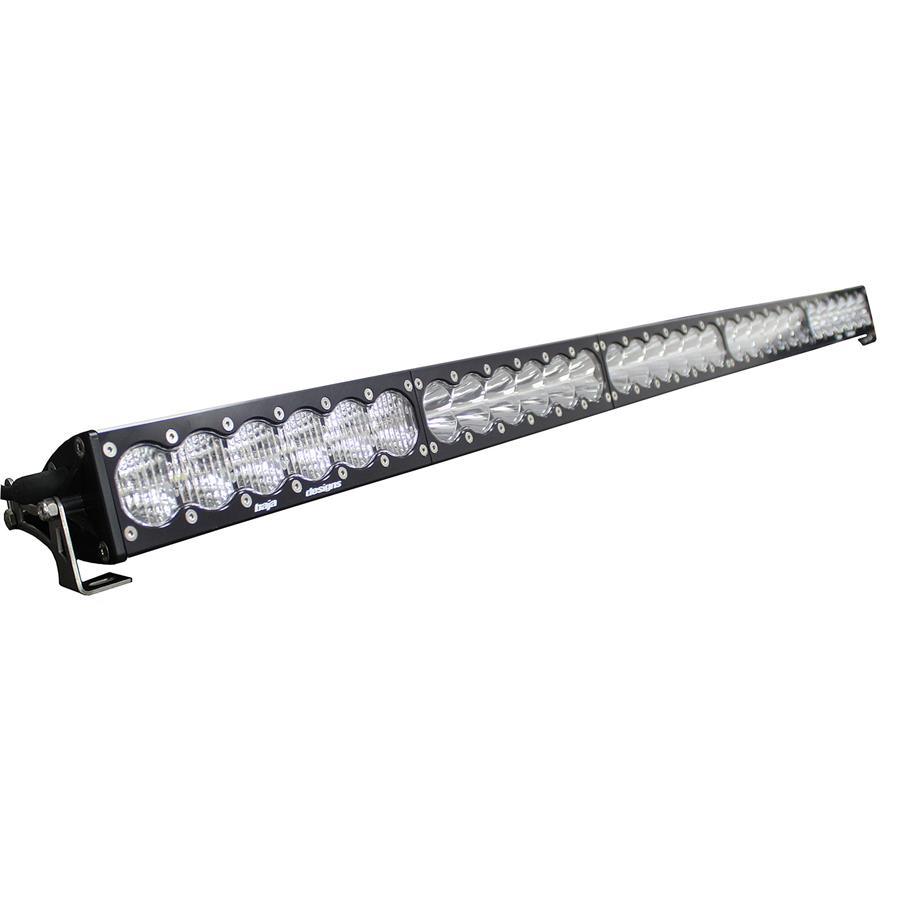

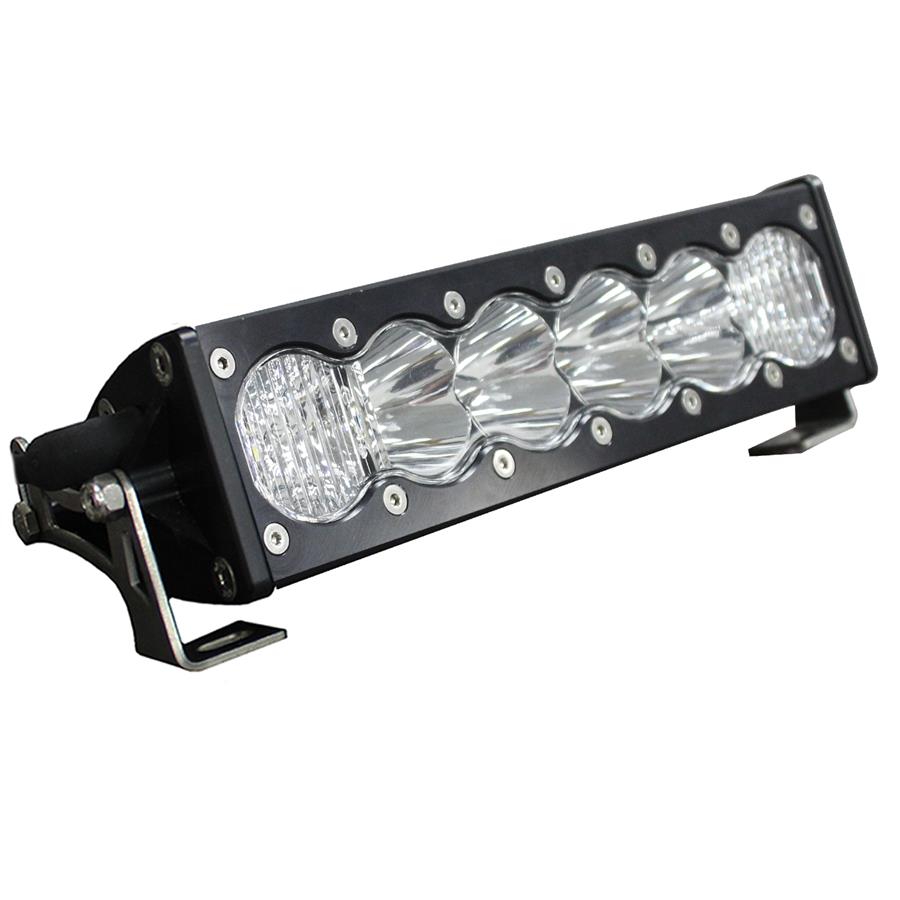

Baja Designs OnX6 LED Light Bar

$558.95$2,209.95

Clear
SKU: N/A Category: Brand:

Description

At an impressive 7,350 lumens per 10” section, the brightest just got up to 50% brighter.  The Baja Designs OnX6 LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6™ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

The Baja Designs OnX6™ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features:

Satisfactions Guarantee – 30 Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color





10″ Specifications:

Lumens: 7,350 Utilizing 6 Cree LEDs
Wattage/Amps: 58.5W / 5A
Dimensions: 10″ x 4.29″ x 2.69″
Weight: 4.25 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

20″ Specifications:
Lumens: 14,700 Utilizing 12 Cree LEDs
Wattage/Amps: 117W / 10A
Dimensions: 20″ x 4.29″ x 2.69″
Weight: 7.85 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

30″ Specifications:
Lumens: 22,050 Utilizing 18 Cree LEDs
Wattage/Amps: 175.5W / 15A
Dimensions: 30″ x 4.29″ x 2.69″
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

40″ Specifications:
Lumens: 29,400 Utilizing 24 Cree LEDs
Wattage/Amps: 234W / 20A
Dimensions: 40″ x 4.29″ x 2.69″
Weight: 15.05 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

50″ Specifications:
Lumens: 32,250 Utilizing 30 Cree LEDs
Wattage/Amps: 292.5W / 25A
Dimensions: 50″ x 4.29″ x 2.69″
Weight: 18.65 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Includes:

  • OnX6 LED Light Bar
  • Mounting Brackets

Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Racer Edition Spot:  A 4° beam focus for illumination WAY down the trail or road.  The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)

Additional information

Weight N/A
Dimensions N/A
Beam Pattern

Driving-Combo, Racer Edition Spot, Spot, Wide Driving

Size

10", 20", 30", 40", 50"
