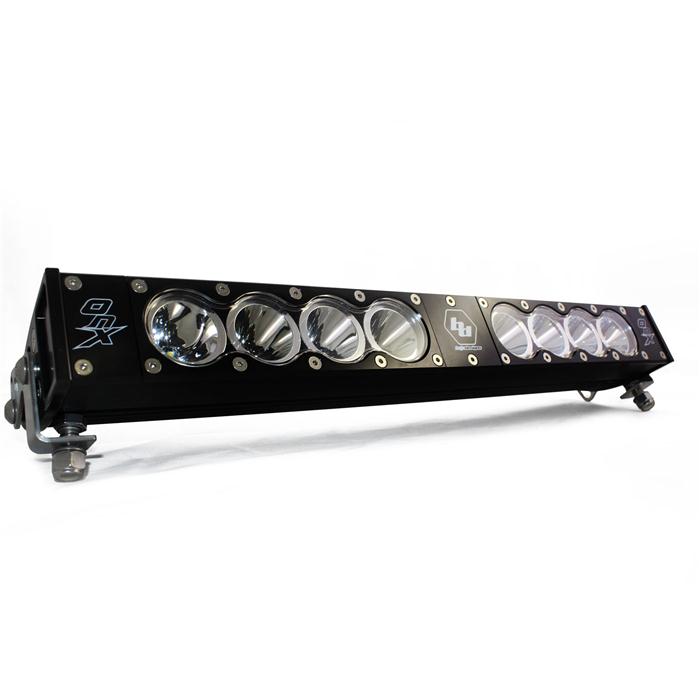

Baja Designs 20″ ONX LED Light Bar Canada

$599.95 $439.95

Out of stock



The new 20″ ONX LED Light Bar is the only light bar on the market that has the distance of an 8” HID with the smooth spread of an LED.  The OnX is available in 10” increments ranging from 8” all the way to 50”.  Each 10” increment offers a concentrated beam of 4300 lumens. Countless hours of testing and preparation have ensured that the OnX is perfect for racers and enthusiasts that need a vast amount of light at high speeds.

The 20″ OnX LED light bar utilizes a Cree XM-L2 T6 Bin LED at 5000k, which is complimented by our one of a kind user changeable optics that have been specifically designed for the OnX’s HID like distance projection. If you’re looking for the guaranteed farthest projecting LED light on the market, look no further.


  • Both Spot and Horizontal Spread Optics can be combined in one lamp
  • uService – Fully serviceable and customizable optics and Lenses
  • Copper Core – Thermal heat management system
  • Weight: 5.0 lbs
  • IP69K Certified (Submersible to 9FT)
  • IK10 Compliant (Mechanical Impact Testing)
  • Vibration Rating: 7.7Grms
  • Operating Temperature: -40 Celsius to +80 Celsius
  • Hardcoated User Changeable Polycarbonate Lens
  • Lifetime Warranty


  • Dimming: Accessible Medium (Dust) and Strobe Modes
  • Total Lumens: 8,600
  • Housing: Extruded Aluminum, Anodized, Laser Etched
  • Power Consumption: 84 watts
  • Emitter: CREE XM-L2 LED, 5000 Kelvin
  • 19.50” Long, 2.25” High, 4.25” Inches Deep
  • 49,930 hour LED life expectancy

Exceeds MIL-STD810G requirements

  • Low Temperature Test
  • High Temperature Test
  • Temperature & Humidity Test
  • Thermal Shock Cycling Test
  • Dust Test
  • Random Vibration Test
  • Mechanical Shock Test
  • Low Pressure Test
  • Drip Box Water Test


Additional information

Weight 10 lbs
Dimensions 25 × 8 × 8 in
