Star C2 360 Degree LED Beacons (Class 2)

A Polycarbonate Lens SAE Class 2 LED Beacon, Made in the USA with 28 Flash Patterns

Description

Star C2 360 Degree LED Beacons
Product Features:
  • Two Star Generation IV LEDs
  • 28 customer selectable flash patterns, including steady-on
  • Shipped in a quad flash pattern
  • 256 Series: D lightweight polycarbonate, universal flange base (3-hole permanent mount, 1” pipe mount, optional vacuum or magnet mount with cig. plug)
  • 240 Series: Durable polycarbonate screw on lens, rugged die-cast aluminum base with powder coat finish and universal mounting (permanent mount, flange mount, standard ½” pipe mount)
Specifications:
  • 256 Series Dimensions:
    Short dome – 4-3/4” tall x 6-13/32” dia.
    Tall dome – 6-11/16” tall x 6-13-32” dia.
  • 240 Series Dimensions:
    Short dome – 4-1/4” tall x 5-1/2” dia.
    Tall dome – 6” tall x 5-1/2”dia.
  • Voltage:10-16V DC
  • Amp draw: 0.43 max
  • Color: Amber or Clear only
  • Approvals: SAE Class II

Star C2 360 Degree LED Beacons (SAE Class 2)

Standard Models:

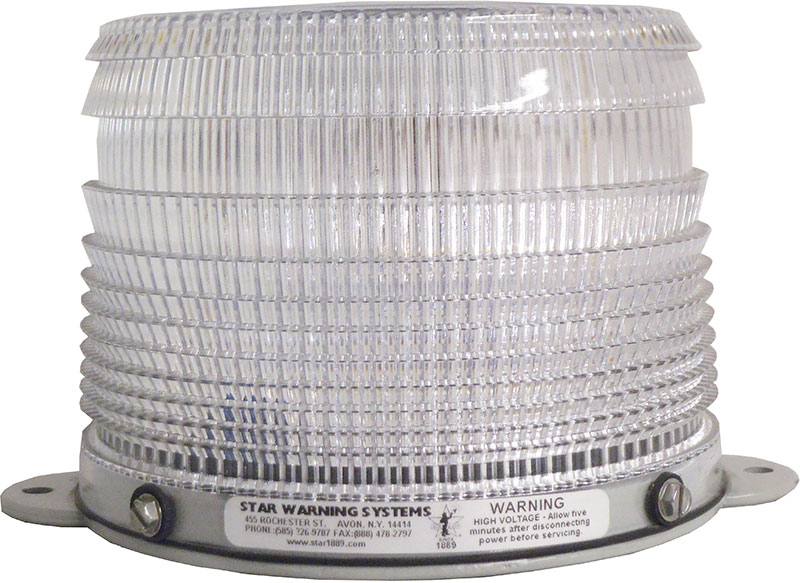

240SFL: C2 LED beacon short dome, flange die-cast base permanent mount

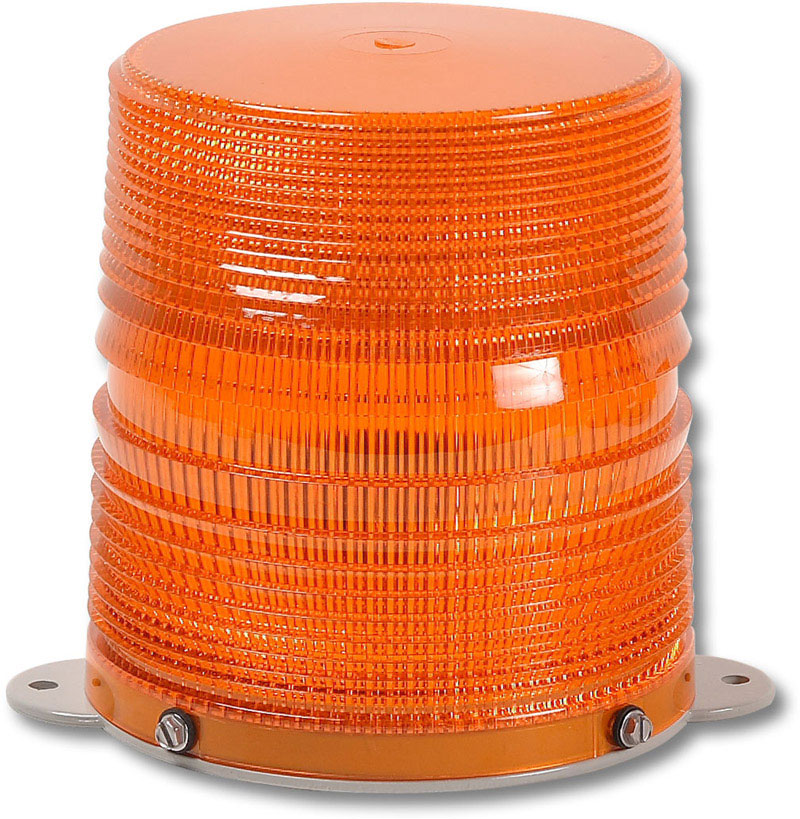

240CFL: C2 LED beacon tall dome, flange die-cast base permanent mount

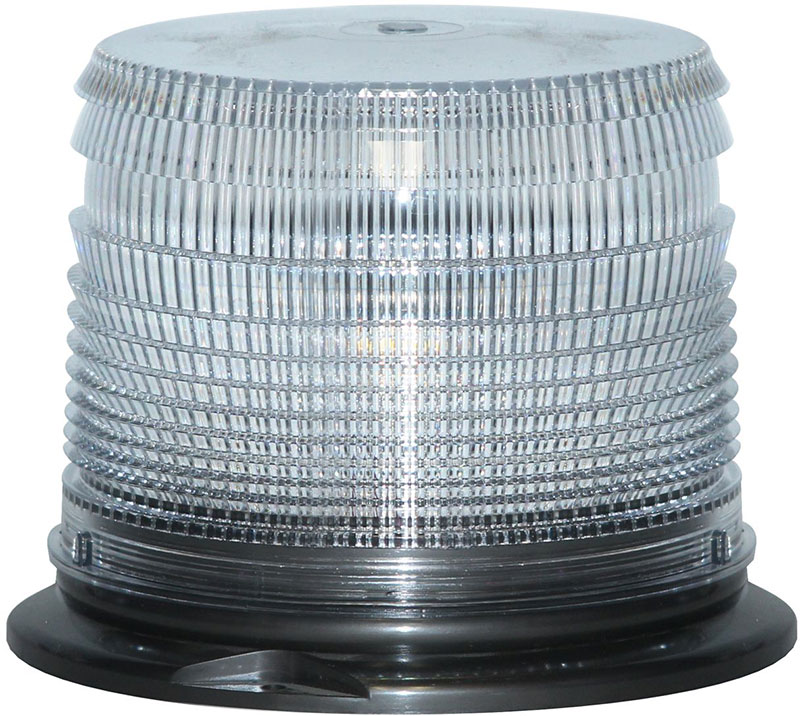

256TSL: C2 LED beacon short dome, flange plastic base permanent mount (magnet mount available)

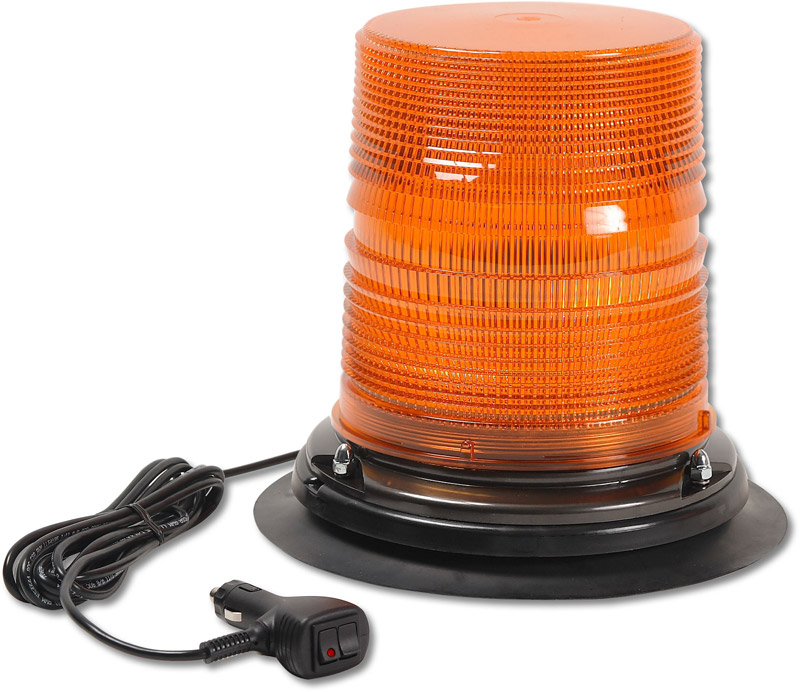

256TCL: C2 LED beacon tall dome, flange plastic base permanent mount (magnet mount available)
