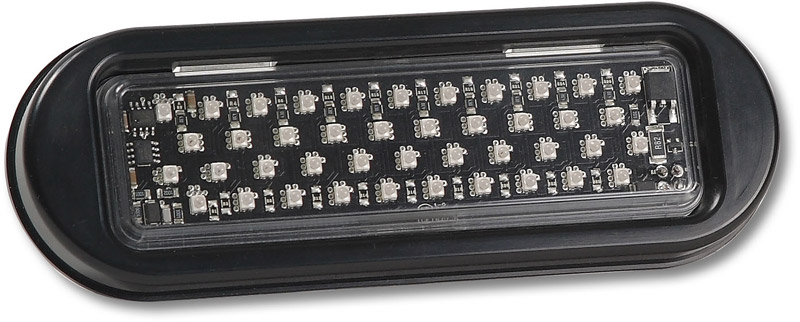

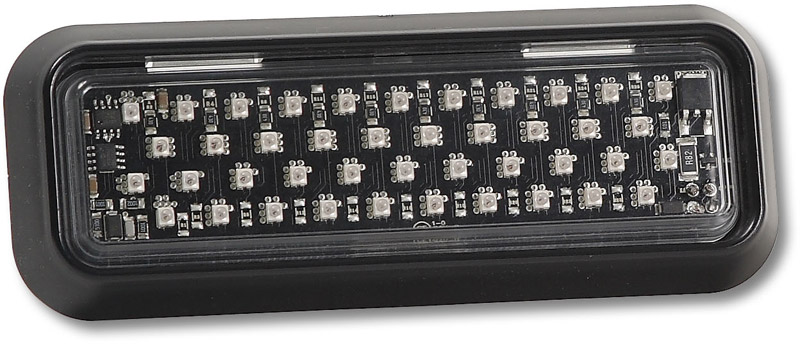

Star Signal DLXT Series Thinline Perimeter LED Warning Lights

Description

Product Features:

  • Only ½” thick!
  • Weather resistant housing
  • Fully encapsulated circuitry
  • Interior or exterior surface mounting or with optional mounting brackets
  • Available with Black or Chrome bezels (Order DLXT-121-** or DLXT-121-C** for LED Light with Chrome Bezel)
  • High intensity, PLCC4 LEDs
  • Synchronizing capability (will also synchronize with STAR DLX3 Auxiliary LED lights or other STAR LED units)
  • Reverse polarity protection
  • Current limit protection over entire operating voltage
  • 11 Customer selectable flash patterns including a Steady-On (21 Customer selectable flash patterns including a Steady-On when two DLXTs are synchronized)
  • Dimensions: 2-1/4” H x 5-3/4” W x 1/2” D
  • Voltage: 10V – 16V DC Amp Draw: Less than 1 Amp
  • Colors: Amber, Blue, Green, Red
  • Ships complete with mounting hardware, gaskets, and instructions

DLXT Part number configuration:

DLXT STANDARD LED FLASHER
DLHT HAZARD/ TAIL (EXT. FLASH)
DLTT AUXILIARY STOP-TAIL-TURN
DLNT DUMMY STEADY BURN HEAD

 Brackets for DLXT:

Bracket Mounting Options
274-DLXT-T Truck Mounting
274-DLXT-45 45 Degree Mounting
274-DLXT-W Window Mounting
274-DLXT-U L-Bracket (Universal Mounting)
274-DLXT-RL Rear License Plate Mounting
274-DLXT-2X1 L-Bracket for Mounting Two DLXT-121 LED Lights Vertically
274-DLXT-1X2 L-Bracket for Mounting Two DLXT-121 LED Lights Horizontally
