Code 3 MR6 LED Lightheads

$129.95 $119.95

Out of stock

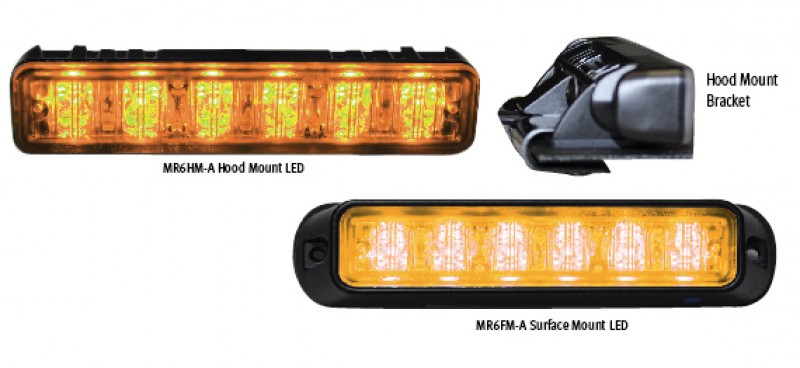

Code 3 MR6 LED Lightheads

  • Lightheads can be Surface Mounted or Flush Mounted anywhere on your vehicle
  • The HM Series Lighthead includes Swivel Mount and Hood Mount Brackets
  • High powered, water resistant, compact LEDs provide exceptional straight on and off-angle performance for any vehicle as well as construction equipment and any other heavy-duty applications.
Design Features
  • TIR Optic LED Lightheads
  • (6) High Powered LEDs in all Red, Blue, Amber, or White
  • Split Models available in R/B, R/W, B/W, B/A, A/W colors
  • 13 User Selectable Flash Patterns including Steady Burn
  • Synchronous Capabilities with other MR6 Lights for Simultaneous or Alternating Flashing
  • MR6FM Series Designed for Flush or Surface Mounting
  • MR6HM Series are Designed for Hood Mounting
Standard Options
  • Flush Mount Grommet Sold Separately
  • Hood Mount can be mounted (3) different ways: (1) two fastener,
 clamping style (no holes need to be drilled); (2) through hole; and (3) double sided-tape.
General Specifications
  • Surface Mount Unit: 5.25” L x 0.77” D x 1.10” W(133.4 mm x 19.6 mm x 28 mm)
  • MR6 (Flush Mount) with Grommet (MR6FHKIT) size = 1.62” L x .67” D x 5.77” W (17mm x 41.1mm x 146.5mm)
  • MR6 Hood Mount  with Clamp Type Assembled  size = 4.22” L x 1.80” D x 1.50” W(45.7mm x 38.1mm x 107.1mm)
  • MR6 Hood Mount Permanent Mount Type  size = 4.22” L x 1.68” D x
 1 .00”W(42.6mm x 25.4mm x 107.1mm)
  • 12/24 Volt
  • Meets SAE J595, California Title 13 when properly configured
  • ECE 65 Specifications for International Requirements
  • 5-Year Warranty on LEDs
ECE65 Certified Logo24 VOLT Logo

Additional information

Weight 1 lbs
Dimensions 10 × 6 × 6 in
