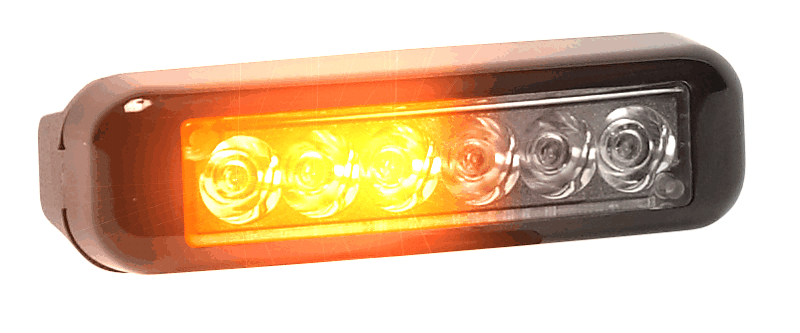

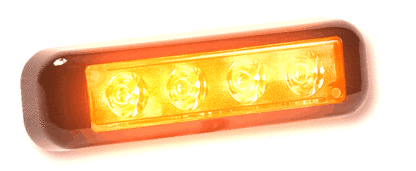

Star Signal DLX4 and DLX6 Series Versa Star – Auxiliary Light

Description

VersaStar™ DLX4 Series & DLX6 Series are vesatile LED Warning Lights that are built with fully encapsulated circuitry and can be mounted just about anywhere, interior or exterior! DLX4s & DLX6s are the same size which allows for easy relocation or reconfiguration. The DLX4s are designed for flush or bracket mounting while the DLX6s are designed for bracket mounting only. The DLX6 also incorporates a heavy duty heat sink. Both series include the same snap on bezel or are available with flashback hoods that include either a cig plug adapter or with a 12′ wire harness. These high intensity LED lights are reverse polarity protected and current limiting protection over the entire operating voltage is standard. S-LINK SYSTEM™ is also standard offering synchronizing capability with other STAR LED units along with 21 customer selectable flash patterns that give these LED lights versatility in the field. Optional mounting brackets are available. Ships complete with permanent   mounting hardware, gaskets, and instructions



Product Features:

  • DLX4 LED heads are designed  for flush or bracket mounting
  • DLX6 LED heads are designed  for bracket mounting only
  • DLX4 & DLX6 LED heads  are the same size
  • DLX4 & DLX6 LED heads  are interior or exterior mount
  • DLX6 LED heads incorporate a  heavy duty heat sink
  • Snap on, weather resistant  bezels
  • Flashback hoods available in  DLX4 or DLX6 Series and are interior mount only
  • S-LINK SYSTEM™ synchronizing  capability with other STAR LED units
  • Split color combinations  available (excludes DLX4-HK2 & DLX6-HK2 Series)
  • Fully encapsulated circuitry
  • High intensity, STAR  Generation-4 LEDs
  • Reverse polarity protection
  • Current limit protection  over entire operating voltage
  • 21 Customer selectable flash  patterns; including Steady-On
  • Dimensions:       1” H x 3-5/8” W x 3/4” D (DLX4 &  DLX6)
  • Voltage:            10V – 30V DC
  • Amp Draw: DLX4:   0.7 Amps @ 12V DC, 0.3 Amps @ 24 V DC (max)
  • Amp Draw:  DLX6:   0.9 Amps @ 12V DC, 0.5 Amps @ 24V DC (max)
  • Color Combinations: Amber/Amber, Blue/Blue, Green/Green, Red/Red,  White/White,   Amber/Blue, Amber/Red, Amber/White, Red/Blue,  Red/White, Blue/White
  • Approvals:   DLX4:  Class I, California Title 13 (Amber, Blue, Red,  White)
  • Approvals:    DLX6: Class I, California Title 13 (Amber, Blue, Red,  White, Red/Blue)
